Creating Server Virtual Port
Serial Port Redirector allows creating server virtual serial port. This port listens on specified TCP port and accepts incoming network connections on it.

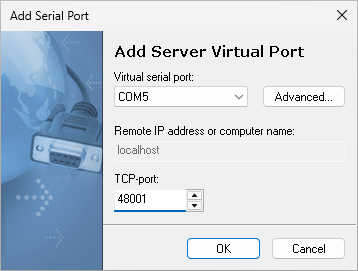

1.
Click
to create virtual serial port.
2. Select virtual serial port number from the drop-down list.
Note: Serial Port Redirector supports COM ports overlapping. It means that virtual serial port can have the same name as existing physical COM port.
If overlapped virtual COM port is created, it will be accessed instead of physical one.
3. Specify TCP port for incoming connections. Serial Port Redirector will listen on this TCP port.
Note: Click to configure advanced settings for virtual serial port. Refer to Configuring Server Virtual Port for details.
Then click button.

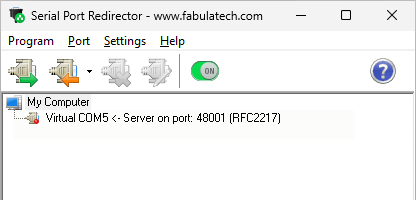

The program will create virtual serial port. Every time, when communications application opens this serial port, Serial Port Redirector listen on configured TCP port for incoming connection. Once the incoming connection is established, all data from this connection is transferred to virtual serial port and vice versa.
